Variator

FOB Reference Price:Get Latest Price
US$1.00 - US$100.00 / Unit | 10 Unit/Units (Min. Order)
Rated Power:
-
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops
Gearing Arrangement:
worm
Output Torque:
2.6-1195N.M
Input Speed:
300-1800Rpm
Output Speed:
14-280rpm
Place of Origin:
Zhejiang, China
Brand Name:
EVER-POWER
Rated Power:
0.06-15KW
Model Number:
UDL002/UDT020
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
CARTON/WOODEN/AS YOUR REQUEST
Port
ningbo/shanghai

                             UDL SPEED VARIATORS



UDL Series planetary cone & disk step-less speed variator

high quality and low price
pls feel free to contact with us if you have any problem

....

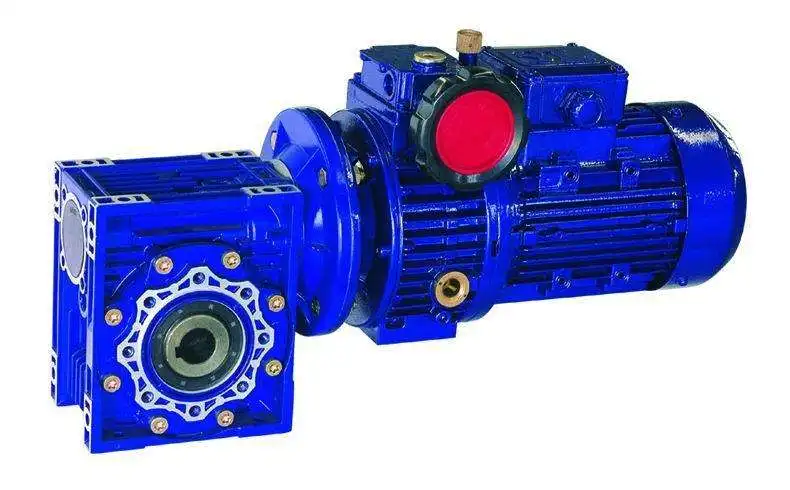

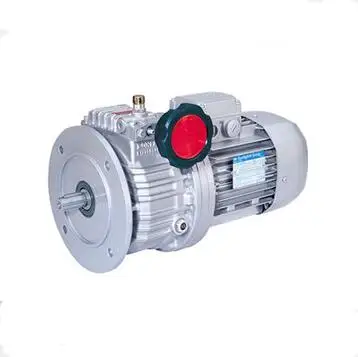

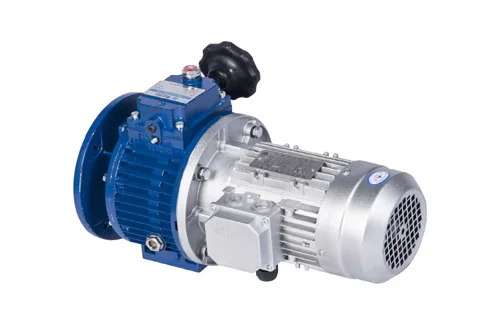

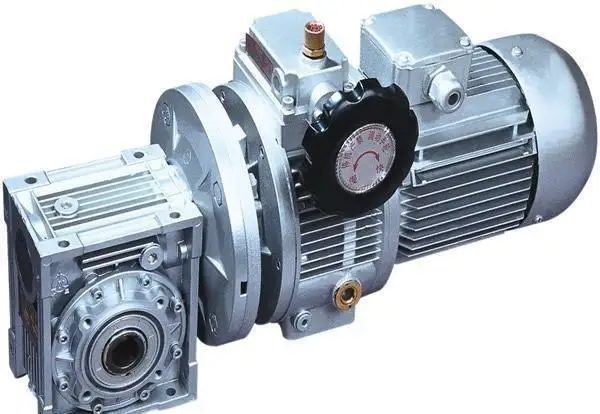

Variator and speed motorvariator

For power ratings from 0,15 to 9,2 kW.
Silent, vibration-free running.
High efficiency.
Bidirectional rotation.
Control handwhel positional on either side.
Speed repeatability at max: ± 0,5%
Speed repeatability at min: ± 0,1%.
Regulaton sensibility: 0,5 rpm.
Casings (TX): diecast aluminium alloy.
Shafts: case hardened and tempered 20Cr steel after ground >HRC60

Internal components: 100Cr6 heat-treated steel.

All the sizes are painted with Ral 5010 blue epoxy-polyester powder.







UDL speed variator with motors
